Confidential Voting

A fullstack tutorial for cross-chain confidential voting on IBC-connected chains.

Overview

This tutorial explains how to upload a confidential voting contract on Secret Network, which you can execute and query for private voting on any IBC-connected chain. 🚀

In this example, you will learn how to deploy a confidential voting contract on Secret Network which you will execute from Osmosis mainnet.

The SDK abstracts IBC interactions with the Secret Network for applications that use Cosmos wallets. It introduces a secure method for generating confidential messages and reliably authenticating users at the same time using the chacha20poly1305 algorithm.

View the typescript SDK here, which we will learn how to implement shortly 🎉

In this tutorial you will learn:

1. How to run the fullstack cross-chain Next.js application in your browser.

2. How to use the core smart contract logic for confidential cross-chain votes and proposals using IBC hooks.

3. How to deploy your very own voting contract on Secret Network.

See a fullstack demo here!

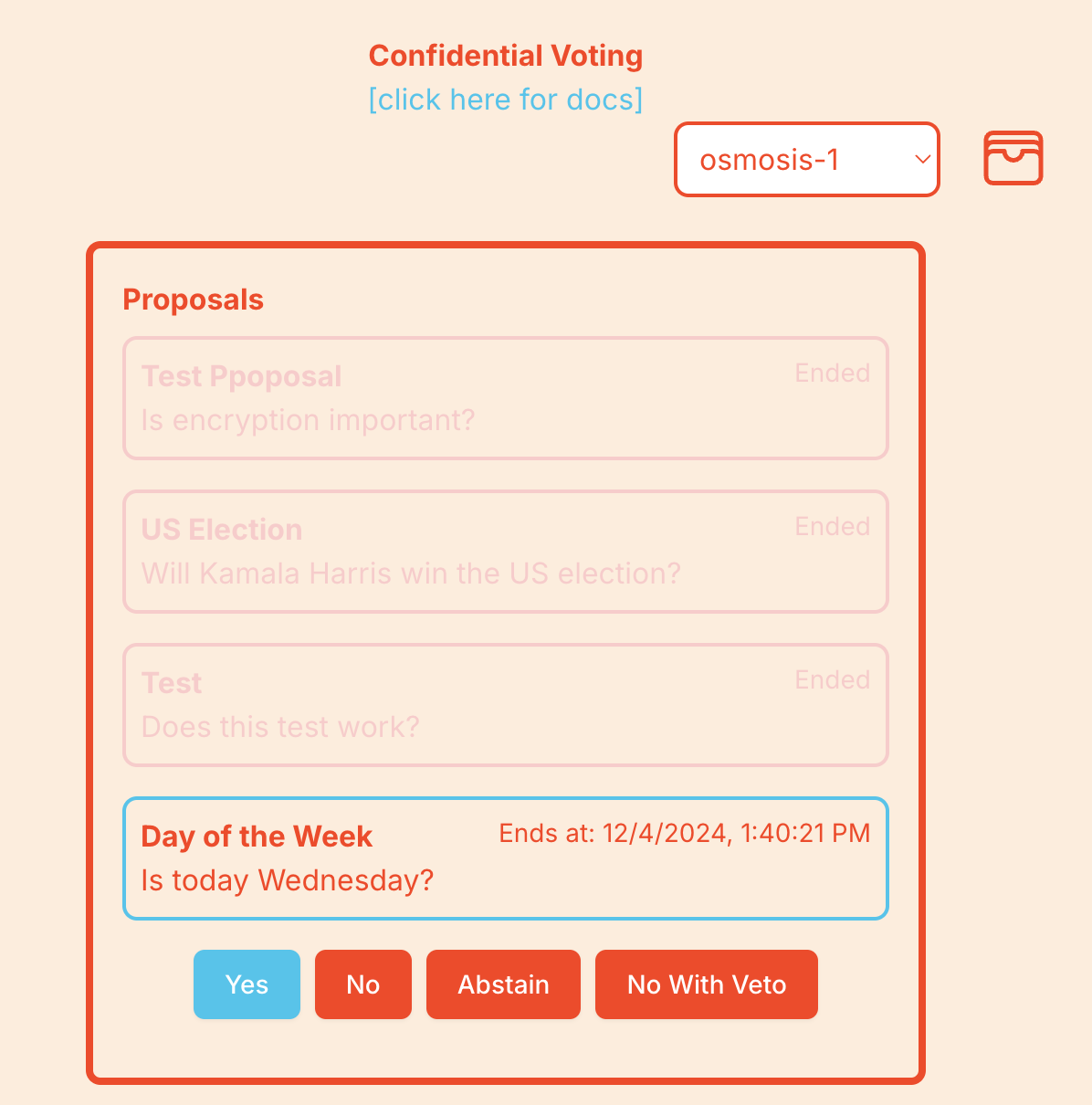

Fullstack Confidential Voting on Secret Network

The only requirement for using Secret Network's IBC toolkit is an existing IBC transfer channel. 🤓 You can view existing channels here or create a channel of your own.

Getting Started

Clone the repo:

git clone https://github.com/writersblockchain/cosmos-ccl-encrypted-payloads-demo

cd into next-frontend and install the dependencies:

cd next-frontend && npm install

Add environment variables in cosmos-ccl-encrypted-payloads-demo/next-frontend:

NEXT_PUBLIC_SECRET_CHAIN_ENDPOINT="https://lcd.mainnet.secretsaturn.net"
NEXT_PUBLIC_SECRET_CHAIN_ID="secret-4"
NEXT_PUBLIC_CONSUMER_CHAIN_ID="osmosis-1"

Start the application:

npm run dev

The fullstack Next.js application should now be running in your browser! You can use it to create confidential votes and proposals. Now that you have the application running in your browser, let's dive into the smart contract logic!

Understanding the contract

Execution Messages

To encrypt proposals and votes using the SDK, we use the enum called InnerMethods, which wraps the possible actions in the voting smart contract, namely, CreateProposal and Vote, with the SDK encryption logic:

#[cw_serde]
pub enum InnerMethods {
    CreateProposal {
        name: String,
        description: String,
        end_time: Uint64
    },

    Vote {
        proposal_id: Uint64,
        vote: VoteOption
    },
}

pub type ExecuteMsg   =   GatewayExecuteMsg<InnerMethods>;

InnerMethods leverage the SDK by using the GatewayExecuteMsg to structure encrypted execution messages for cross-chain proposal management and voting:

#[cw_serde]
pub enum ExecuteMsg {

    Encrypted {
        payload             :   Binary,
        payload_signature   :   Binary,
        payload_hash        :   Binary,
        user_key            :   Binary,
        nonce               :   Binary,
    }

    ResetEncryptionKey  { },

    Extension {
        msg: {
            CreateProposal { ... }   /   Vote { ... },
        }
    }
}

Understanding the Encryption SDK

The magic of Secret Network's encryption SDK happens here, with handle_encrypted_wrapper:

let (
        msg,
        info
    ) = sdk::handle_encrypted_wrapper(
        deps.api, deps.storage, info, msg
    )?;

The Extension variant inExecuteMsg leverages the functionality of handle_encrypted_wrapper because the wrapper decrypts and verifies the entire message payload before the Extension message is processed. Here’s how it works:

1. handle_encrypted_wrapper Applies to the Entire Input:

   • When the execute function is called, the msg and info parameters are initially encrypted.

   • handle_encrypted_wrapper is invoked with these parameters:

      let (msg, info) = sdk::handle_encrypted_wrapper(deps.api, deps.storage, info, msg)?;

   • This function decrypts and verifies the wrapper (encrypted payload) to produce:

     • A decrypted msg (of type ExecuteMsg).

     • A decrypted info (with verified sender details).

2. Decrypted msg Can Contain ExecuteMsg::Extension:

   • After decryption, the msg can match any variant of ExecuteMsg, including ExecuteMsg::Extension.

   • For example:

     ExecuteMsg::Extension { msg } => {
         match msg {
             InnerMethods::CreateProposal { name, description, end_time } => { /* logic */ },
             InnerMethods::Vote { proposal_id, vote } => { /* logic */ },
         }
     },

   • Here, Extension contains an additional layer of messages (InnerMethods) which define specific functionality.

3. How handle_encrypted_wrapper Affects Extension:

   • The msg inside ExecuteMsg::Extension (i.e., InnerMethods) is also encrypted in the original input.

   • handle_encrypted_wrapper ensures:

     • The outer msg is decrypted (revealing Extension).

     • The inner data (e.g., InnerMethods) is now in cleartext and ready for logical execution.

   • Without this decryption, the contract could not access or process InnerMethods within the Extension.

4. Validation and Security:

   • By verifying and decrypting the entire payload at the wrapper level, the contract ensures:

     • The Extension message is authentic and unaltered.

     • The sender (info) is authenticated and valid.

     • Any operations within InnerMethods (like creating proposals or voting) are authorized based on the decrypted info and secure data.

Frontend Encryption Logic

Now that you understand how the encryption SDK functions, let's look how it's connected to the frontend. The Next.js encryption logic can be found in Gateway.ts:

Create Proposal:

  const create_proposal = async (name: string, description: string, end_time: string = "60") => {
    const contract = contractConfig.votes;
    const msg = { create_proposal: { name, description, end_time } }
    return await execute_gateway_contract(contract, msg);
  }

Vote on Proposal:

 const vote_proposal = async (proposal_id: string, vote: string) => {
    const contract = contractConfig.votes;
    const msg = { vote: { proposal_id, vote } }
    return await execute_gateway_contract(contract, msg);
  }

Both of these functions access a confidential voting contract already deployed on Secret Network (at the end of this tutorial, you will learn how to deploy your own).

Then, we call the execute_gateway_contract function, which is where all of the cross-chain SDK logic is implemented using IBC hooks:

const execute_gateway_contract = async (contract: Contract, msg: object) => {
    const ibcConfig = loadIbcConfig(chainId);
    const keplrOfflineSigner = (window as any).getOfflineSigner(chainId);

    const response = await sendIBCToken(
      cosmosjs!,
      keplrAddress!,
      contract.address,
      token!,
      "1",
      ibcConfig.consumer_channel_id,
      await gatewayChachaHookMemo(
        keplrOfflineSigner,
        { extension: { msg } },
        chainId!,
        contract,
      )
    );
    return response;
  };

You can further examine sendIBCToken and gatewayChachaHookMemo in the CCL-SDK ibc.ts file here.

Query Messages

There are two types of queries using the CCL SDK:

1. Unauthenticated queries ie Extension, which are queries that don’t require sensitive or protected data. Example: Retrieving a list of proposals or votes, which is public.

2. Authenticated queries ie Inner Queries (WithPermit, WithAuthData), which are queries that require auth_data from the caller for permission validation. Example: MyVote { proposal_id } retrieves a user-specific vote.

	Extended Queries	Inner Queries

Data Access Level	Public or general data	Private or user-specific data

Authorization	No extra authentication required	Requires auth_data or permit

Processing Function	query::query_extended	query::query_with_auth_data

Use Cases	Public info like proposals, votes	Personal data like a user’s vote

To query encrypted votes using the CCL SDK, use the enum InnerQueries, which wraps the possible queries in the voting smart contract, namely, MyVote, with the CCL SDK encryption logic:

#[cw_serde]
pub enum ExtendedQueries {
    Proposals {},
    Proposal { proposal_id: u64 },
    AllVotes { proposal_id: u64 },
}

#[cw_serde]
pub enum InnerQueries {
    MyVote { proposal_id: u64 },
}

pub type QueryMsg   =   GatewayQueryMsg<InnerQueries, sdk::CosmosAuthData, ExtendedQueries>;

InnerMethods leverages the SDK by using the GatewayQueryMsg types to query encrypted cross-chain votes. You have the choice of using two different types of encrypted queries: query_with_auth_data and query_with_permit. In this tutorial, you we will learn how to implement query_with_permit.

1. WithAuthData:

pub fn query_with_auth_data(
    deps        :   Deps,
    env         :   Env,
    auth_data   :   CosmosAuthData,
    query       :   InnerQueries
) -> StdResult<Binary> {
    auth_data.verify(deps.api)?;
    auth_data.check_data(deps.storage, &env)?;
    let address = auth_data.primary_address()?;
    query_inner(deps, env,address, query)
}

1. WithPermit:

pub fn query_with_permit(
    deps        :   Deps,
    env         :   Env,
    permit      :   Permit,
    hrp         :   Option<String>,
    query       :   InnerQueries
) -> StdResult<Binary> {
    let address = secret_toolkit::permit::validate(
        deps,
        PERMIT_PREFIX,
        &permit,
        env.contract.address.to_string(),
        hrp.as_deref()
    )?;
    query_inner(deps, env, address, query)
}

Now let's take a look at the frontend code to see how query_with_permit is implemented. 😄

Frontend Query Logic

The Next.js query decryption logic can be found in Gateway.ts:

Query proposals:

const query_proposals = (): Promise<[number, Proposal][]> => {
    return query_contract_public(contractConfig.votes, { extension: { query: { proposals: { } } } });
  }

Query votes:

const query_my_vote = (proposal_id: number, message?: string) => {
    return query_contract_auth(contractConfig.votes, { my_vote: { proposal_id } }, message);
  }

Because votes are encrypted, we must decrypt them in order to query a wallet's votes. The frontend function query_contract_auth securely queries the Secret smart contract using query permits, ensuring that only authorized users can access sensitive data. Query permits are cryptographic credentials that:

• Prove the user’s ownership of a wallet.

• Allow contracts to verify the user’s identity.

• Avoid exposing the private key.

const query_contract_auth = async (
    contract: Contract,
    query: object,
    data: string = "Query Permit"
  ): Promise<any> => {

    const storageKey = `${keplrAddress}:${contract.address}:queryPermit}`;
    const queryPermitStored = localStorage.getItem(storageKey);

    let credential: CosmosCredential;

    if (queryPermitStored) {
      credential = JSON.parse(queryPermitStored) as CosmosCredential;
    } else {
      const toSign: DataToSign = {
        chain_id: "secret-4",
        contract_address: contract.address,
        nonce: toBase64(Random.getBytes(32)),
        data: btoa(data)
      }
      const message = toUtf8(JSON.stringify(toSign));
      const signRes = await (window as any).keplr.signArbitrary(chainId, keplrAddress!, JSON.stringify(toSign))
      credential = {
        message: toBase64(message),
        signature: signRes.signature,
        pubkey: signRes.pub_key.value,
        hrp: keplrAddress!.split("1")[0]
      }
      localStorage.setItem(storageKey, JSON.stringify(credential));
    }
    const res = await queryGatewayAuth(contract, query, [credential]);
    console.log("query:", query, " res:", res);
    return res;
  }

You now should have all the tools you need to use the IBC CCL toolkit! Lastly, let's learn how to deploy your own voting contract on Secret Network 👏

How to upload a voting contract to Secret Network

cd into deploy-scripts and install the dependencies:

cd deploy-scripts && npm install

Add your wallet mnemonic to .env. Then compile the contract:

make build-mainnet-reproducible

The compile script requires Docker to be open for successful compilation

Compile the typescript upload script so you can upload the compiled voting contract:

npm run build

Once you run the above command, the typescript upload file in ./src will be compiled as javascript file in ./dist.

Upload and instantiate the voting contract on Secret Network Mainnet:

node dist/deploy_voting.js

In your terminal, a codeID, codeHash, and contractAddress will be returned:

"code_id": 8882,
"code_hash": "f3c2e28cd1574d128ded60ce967cdb46f7515d807be49127bcc9249c5fd97802",
"address": "secret1q0mycclu927u5m0tn50zgl5af4utrlkzz706lm"

Finally, update config.ts with your contract's code_hash and address:

const contractMultiConfig: ContractMultiConfig = {
    votes: {
        address: "secret1jtc7f8cj5hhc2mg9v5uknd84knvythvsjhd66a",
        hash: "ff8443878e8a339637c45c13abc4385c4f0c5668b992afc912e5f59e5d098654"
    },
};

Conclusion

Congratulations on completing this on using Secret Network's IBC SDK to encrypt votes cross-chain using Secret smart contracts! 🎉 You've explored the intricacies of encrypted messaging, cross-chain IBC interactions, and secure smart contract execution using the Secret Network CCL SDK. By building and running the fullstack application, you’ve gained hands-on experience in contract deployment, frontend integration, and secure querying with query permits. 🚀
