A TDX Attestation Report contains several cryptographic measurements that prove the integrity of the Confidential Virtual Machine. These values are generated during the boot process and serve as a verifiable fingerprint of the system state.
Below are the key fields that validate the integrity of a SecretVM instance:
These measurements establish a chain of trust between each software layer of the VM—from firmware to container runtime—enabling secure and verifiable confidential workloads.

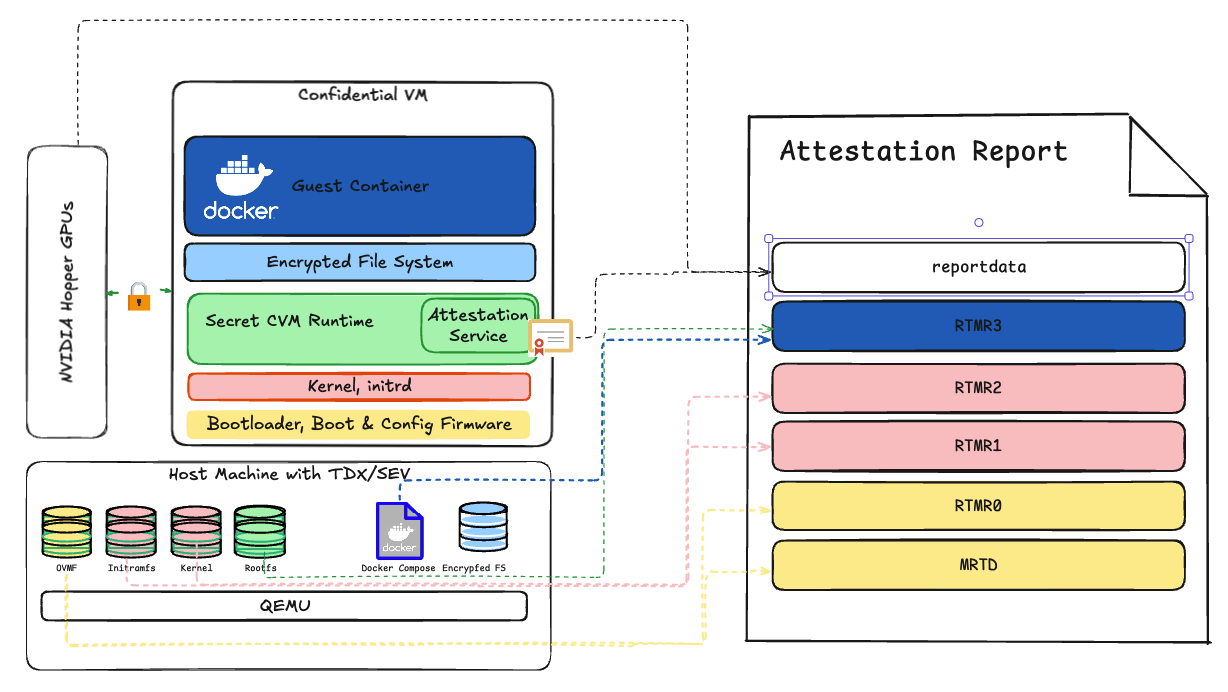

The architectural diagram below illustrates how each of these measurements maps to specific components of the SecretVM stack:
MRTD (Measurement Register for Trust Domain)
Contains the cryptographic hash of the firmware running in the TEE. This is measured within the SEAM (Secure Arbitration Mode).
RTMR0
RTMR1
Contains the measurement (hash) of the Linux kernel used by the SecretVM.
RTMR2
Measures the kernel command line and the Initial RAM Filesystem (initramfs).
RTMR3
Measures the root file system and the docker-compose.yaml file that defines the container workload.
reportdata
A special field that concatenates: - The fingerprint of the TLS certificate generated on the VM. T - The nonce of the GPU Attestation Quote (for GPU-enabled machines only).
Measures firmware-related configuration elements such as: - Configuration Firmware Volume (CFV) - Trusted Domain Hand-Off Blocks (TDHOB) - ACPI tables and more. Refer to for full details
